Available to buy at selected stockists

B&Q

4190 x 2090 x 80mm

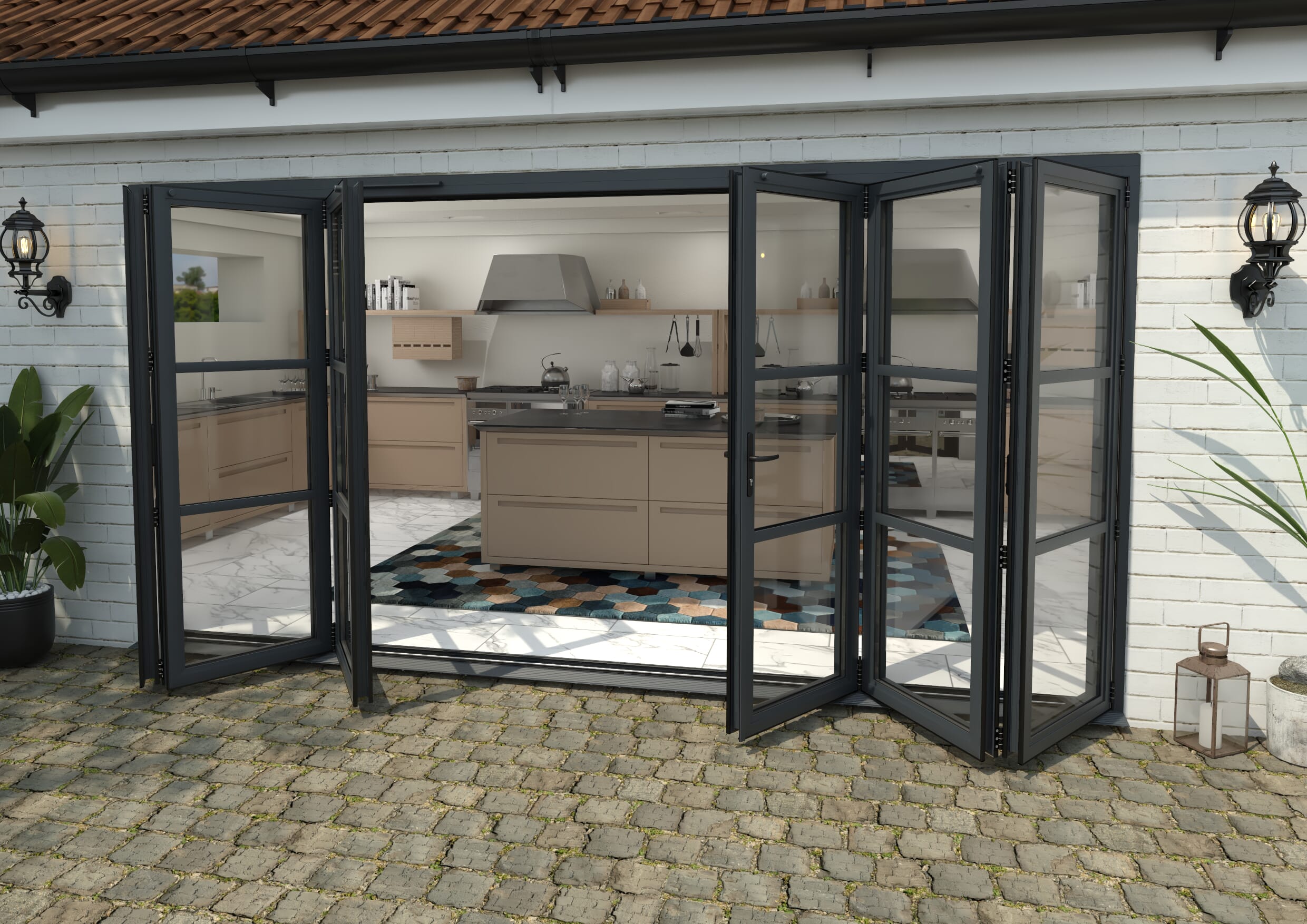

Heritage Anthracite Grey Aluminium External Bi-folding Doors

Door Size: 4190 x 2090 x 80mm (W x H x T)
Opening Size: 2105 x 4205mmmm (W x H)

Materials Icon

Material

Thermally Broken Aluminium

Finish Icon

Finish

Anthracite Grey

Materials Icon

Material

Low E Toughened Double Glazing

Size: H x W x T (mm)
2090 x 1790 x 80mm 2090 x 1790 x 80mm
2090 x 2090 x 80mm 2090 x 2090 x 80mm
2090 x 2390 x 80mm 2090 x 2390 x 80mm
2090 x 2690 x 80mm 2090 x 2690 x 80mm
2090 x 2990 x 80mm 2090 x 2990 x 80mm
2090 x 2990 x 80mm 2090 x 2990 x 80mm
2090 x 3590 x 80mm 2090 x 3590 x 80mm
2090 x 3590 x 80mm 2090 x 3590 x 80mm
2090 x 4190 x 80mm 2090 x 4190 x 80mm
2090 x 4790 x 80mm 2090 x 4790 x 80mm

Material

Thermally Broken Aluminium

Finish

Anthracite Grey

Glazing

Low E Toughened Double Glazing

Guarantee

Aluminium 20 Years, Glazing 10 Years

Part L Compliant

Yes

U-Value

1.4W/m²K

Part F Compliant

Yes

Part Q Compliant

No

Weather Tested

Yes

Security

7 point multipoint locking system

Hardware

Black Handles and Hinges

Opening Options

Folding to the Left, Or Right

Cill Spec

175mm Integrated Sill

Brickwork Opening

2105 x 4205mm

Door Pattern

3 Left/3 Right


- The iconic "Crittall style" is enhanced with 40mm horizontal glazing bars across the doors, inside and out, featuring integral bars within the glass units.
- Delivered to your home fully assembled with glass units supplied loose for on-site glazing due to handling weight.
- Features a 175mm hard-wearing anodized sill.
- Equipped with stylish Black Handles and Hinges.
- Offers market-leading thermal performance levels.

These Heritage aluminium bifold doors are designed to become a focal point in living rooms and kitchens, particularly where the building canopy is extended to create more open-plan living space, seamlessly integrating your home with your garden. Available in sizes ranging from 1800mm to 4800mm, these versatile bifold door sets are ideal for self-builders, designers, or developers. You can easily incorporate a standard product into your design, confident in the knowledge that the finished installation will deliver everything promised.

Installation is straightforward as these grey bifold doors come assembled and pre-adjusted, requiring little to no onsite adjustment. Once the frame is properly set, the patio doors can be installed within hours, following the easy-to-understand instructions included with each set.

The glass is supplied loose to facilitate installation, and we recommend using a professional installer. The glass units need to be fitted on site using traditional toe and heel methods, and the horizontal bars should be installed post-glazing to ensure perfect alignment.

Installation times vary from 4 hours for a small set to 8-10 hours for the largest sets, depending on the pre-prepared opening sizes. For a flawless installation, follow our recommended structural opening size information.
