Door Size:
3590 x
2090 x
80mm (W x H x T)
Opening Size: 2105 x 3605mmmm (W x H)
Material
Finish
Material
Size: H x W x T (mm) | |
---|---|
2090 x 1790 x 80mm | 2090 x 1790 x 80mm |
2090 x 2090 x 80mm | 2090 x 2090 x 80mm |
2090 x 2390 x 80mm | 2090 x 2390 x 80mm |
2090 x 2690 x 80mm | 2090 x 2690 x 80mm |
2090 x 2990 x 80mm | 2090 x 2990 x 80mm |
2090 x 2990 x 80mm | 2090 x 2990 x 80mm |
2090 x 3590 x 80mm | 2090 x 3590 x 80mm |
2090 x 3590 x 80mm | 2090 x 4190 x 80mm |
2090 x 4190 x 80mm | 2090 x 4190 x 80mm |
2090 x 4790 x 80mm | 2090 x 4790 x 80mm |
Material
Thermally Broken Aluminium
Finish
Anthracite Grey
Glazing
Low E Toughened Double Glazing
Guarantee
Aluminium 20 Years, Glazing 10 Years
Part L Compliant
Yes
U-Value
1.4W/m²K
Part F Compliant
Yes
Part Q Compliant
No
Weather Tested
Yes
Security
7 point multipoint locking system
Hardware
Black Handles and Hinges
Opening Options
Folding to the Left, Or Right
Cill Spec
175mm Integrated Sill
Brickwork Opening
2105 x 3605mm
Door Pattern
1 Left/3 Right
- The iconic "Crittall style" is enhanced with 40mm horizontal glazing bars across the doors, inside and out, featuring integral bars within the glass units.
- Delivered to your home fully assembled with glass units supplied loose for on-site glazing due to handling weight.
- Features a 175mm hard-wearing anodized sill.
- Equipped with stylish Black Handles and Hinges.
- Offers market-leading thermal performance levels.

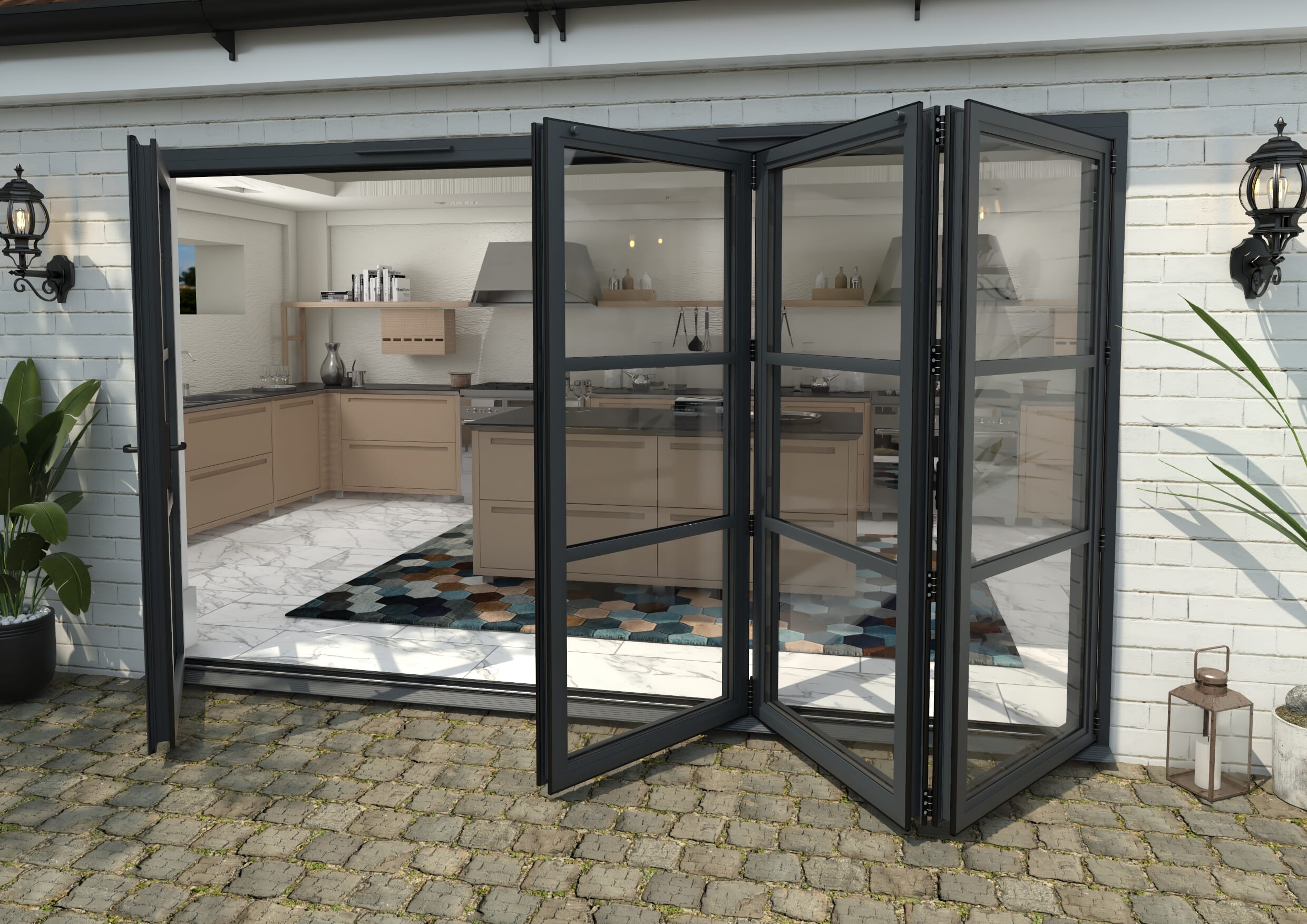

These Heritage aluminium bifold doors are designed to become a focal point in living rooms and kitchens, particularly where the building canopy is extended to create more open-plan living space, seamlessly integrating your home with your garden. Available in sizes ranging from 1800mm to 4800mm, these versatile bifold door sets are ideal for self-builders, designers, or developers. You can easily incorporate a standard product into your design, confident in the knowledge that the finished installation will deliver everything promised.
Installation is straightforward as these grey bifold doors come assembled and pre-adjusted, requiring little to no onsite adjustment. Once the frame is properly set, the patio doors can be installed within hours, following the easy-to-understand instructions included with each set.
The glass is supplied loose to facilitate installation, and we recommend using a professional installer. The glass units need to be fitted on site using traditional toe and heel methods, and the horizontal bars should be installed post-glazing to ensure perfect alignment.
Installation times vary from 4 hours for a small set to 8-10 hours for the largest sets, depending on the pre-prepared opening sizes. For a flawless installation, follow our recommended structural opening size information.
